Weighing Equipment
Multihead Weighers - Standard Range
Autopac Systems supplies Kenwei standard multihead weighers: precision 10, 18 and 20 head machines for fast, accurate weighing across food, pharmaceutical and industrial applications.
Enquire
Ask about this product
About the standard multihead range
Autopac Systems supplies Kenwei's core range of multihead weighers, the workhorse machines behind fast, accurate net-weight filling across food, snack, produce, pharmaceutical and industrial packing lines. Available from 10 through to 20+ weigh heads, these standard machines combine step-motor precision, high-resolution load cells and simple touchscreen operation to deliver consistent, giveaway-free weighing at high speed.
Every Kenwei multihead weigher works on the same principle: product is fed into a set of independently vibrating feed trays, dropped into weigh hoppers fitted with high-precision load cells, and a computer-selected combination of hoppers is discharged together to hit the target weight almost instantly. More heads generally mean higher speed and finer accuracy, so the standard range spans compact 10-head machines through to high-output 18 and 20-head systems. All units are 304 stainless-steel construction, CE/OIML/SGS certified, and built around a step-motor drive with CAN bus and Modbus connectivity for easy integration with downstream baggers, VFFS machines and checkweighers.
Featured models
A representative selection from the standard range. Talk to Autopac Systems about head count, hopper size and options tailored to your product and target output.
10-Head Standard Multihead Weigher
Model JW-A10
A compact, entry-level multihead weigher with 1.6L or 2.5L hopper options, ideal for small-to-medium producers moving from manual or single-head weighing up to full automatic combination weighing. Widely used for candy, seeds, jelly, pet food, puffed snacks, nuts and frozen goods.
Specifications
| Weighing range | 10 – 1,000 g |
|---|---|
| Accuracy | ±0.5 g |
| Max speed | 65 cycles/min |
| Hopper volume | 1.6 L or 2.5 L |
| Control panel | 7" touchscreen |
| Power | 220V / 1,000W / 10A |
| Construction | 304 stainless steel, IP65 |
Key features
- High-precision load cells, 2-decimal resolution
- 100-recipe memory with program recovery
- Independent linear amplitude adjustment per head
- Tool-free, quick-release buckets for easy wash-down
- Optional dimple plate, timing hopper, printer, reject device

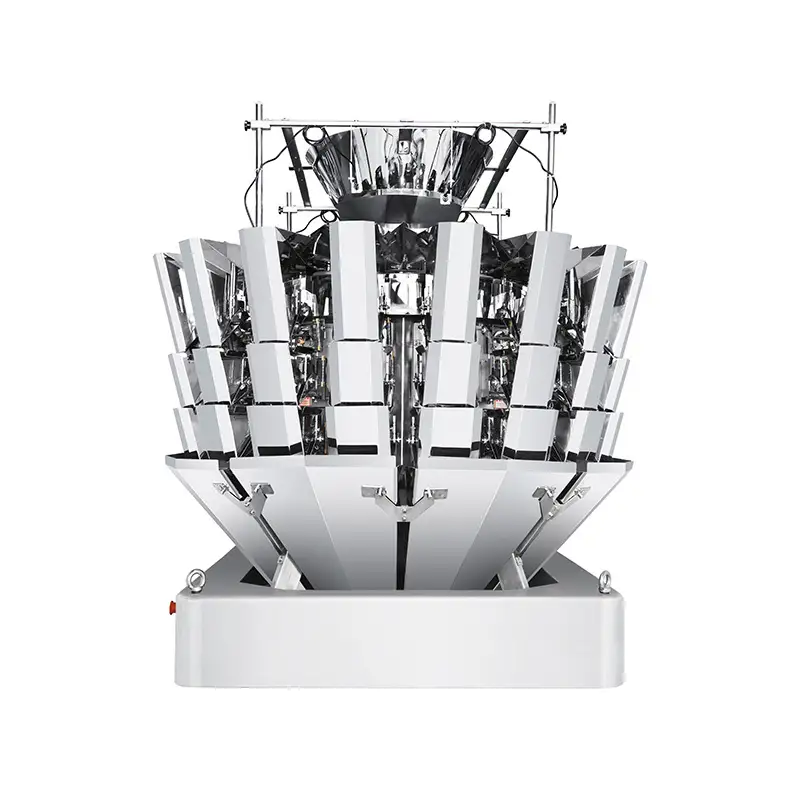

18-Head, 3-Layer High-Precision Weigher
Model JW-A18
A three-tier, 18-head machine built for high-speed weighing of granular, flaked and irregular products where accuracy at pace matters: melon seeds, peanuts, nuts, almonds, candies, potato chips and meatballs. The extra weigh head and triple-layer feed geometry push output well beyond a standard 10-head machine.
Specifications
| Weighing range | 20 – 400 g (model dependent) |
|---|---|
| Accuracy | X(0.5) - GB/T27738-2011 |
| Max speed | 180 packs/min |
| Hopper volume | 1 L or 2.5 L |
| Control panel | 10.1" touchscreen |
| Power | 220V / 2,800W / 12.7A |
| Certifications | CE, OIML, SGS |
Key features
- 3-layer feed system for higher throughput per head
- Intelligent fault alarm and CAN bus / Modbus integration
- Staggered discharge to prevent material blocking
- High-resolution special load cells

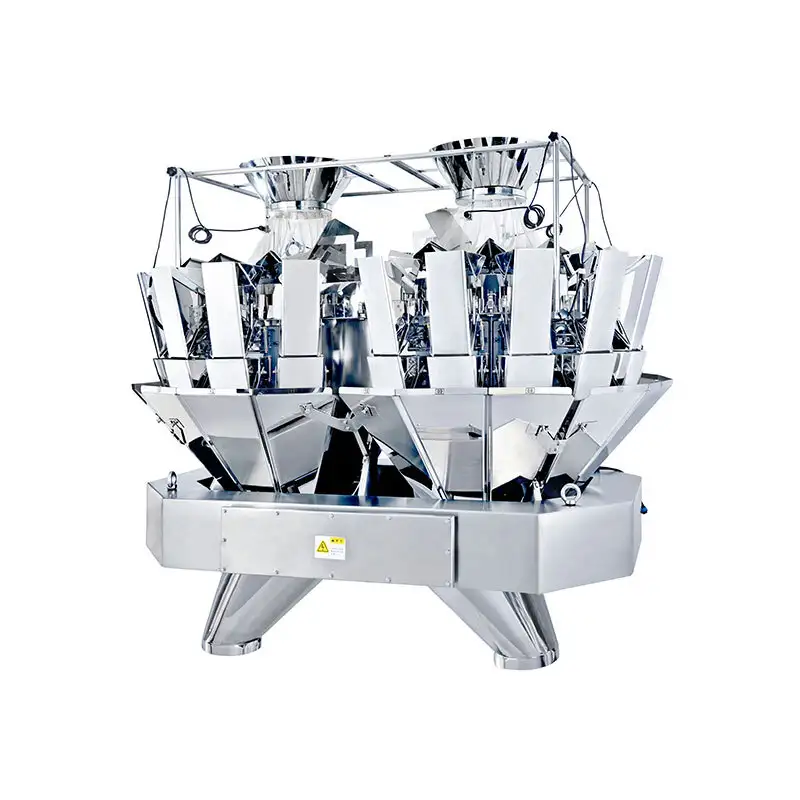

20-Head Twin-Discharge Weigher
Model JW-A20
Kenwei's largest standard-range machine, built with a dual-hopper discharge so it can run as one high-speed single-lane weigher or feed two packing lines from mixed or matched product simultaneously. Suited to high-volume snack, confectionery, dried fruit, frozen food, pharmaceutical (powders, tablets, capsules) and agricultural (seed, grain, fertiliser) operations.
Specifications
| Weighing range | 10 – 1,000 g (mixing mode) |
|---|---|
| Accuracy | X(0.5) |
| Max speed | Up to 130 packs/min (65×2) |
| Hopper volume | 1.6 L or 2.5 L |
| Control panel | 10.1" touchscreen |
| Power | 220V / 2,000W / 16A |
| Weight | ≈850 kg |
Key features
- Dual-hopper design: single high-speed line or twin-line mixing
- Independent main vibrator control per line
- Intelligent multi-sampling for improved accuracy
- Automatic weight compensation for mixed products
