Weighing Equipment
Linear Weighers - High-Speed and Specialty Range
Kenwei high-speed and specialty linear weighers from Autopac Systems: 1 and 2-lane high-speed units, belt-feed for vegetables and fruit, and two-layer belt-vibrate machines for sticky products.
Enquire
Ask about this product
Solutions for large fills and awkward products
For large-piece, heavy-fill or awkward-flow products, Kenwei builds a set of specialty linear weighers alongside the standard multi-lane machines: from ultra-simple 1 and 2-lane high-speed units for heavy granules through to belt-fed machines for delicate vegetables, salad and fruit, and dual-vibration systems for sticky, poor-flow ingredients.
Where a standard multi-lane linear weigher relies on light vibration to spread free-flowing product, these specialty machines change the feed mechanism entirely: gate-discharge hoppers for fast, heavy fills; belts instead of vibrating trays for produce that bruises easily; and dual main/auxiliary vibration plates that feed sticky, poor-flow material in two controlled stages. All retain 304 stainless steel construction and 7" touchscreen control.
Featured models
From single-lane heavy-fill units to belt-fed produce weighers. Ask Autopac Systems which configuration suits your product and fill weight.
1-Lane High-Speed Linear Weigher
Model JW-AX1
A dedicated large-fill machine for granular materials such as white sugar, salt, seeds and monosodium glutamate. A 6L anti-leakage bucket, gate-discharge mechanism and wind-proof Plexiglass door keep heavy, dusty fills fast and accurate across food, pharmaceutical, chemical and plastics applications.
Specifications
| Weighing range | 500 – 4,000 g |
|---|---|
| Accuracy | X(1) - GB/T27738-2011 / OIML R61 |
| Max speed | 15 pieces/min |
| Hopper volume | 6 L |
| Power | 220V / 700W / 3.2A |
Key features
- Pneumatic gate for automatic, precise feeding
- Anti-leakage bucket for small particles
- Dual-outlet hopper for quick discharge

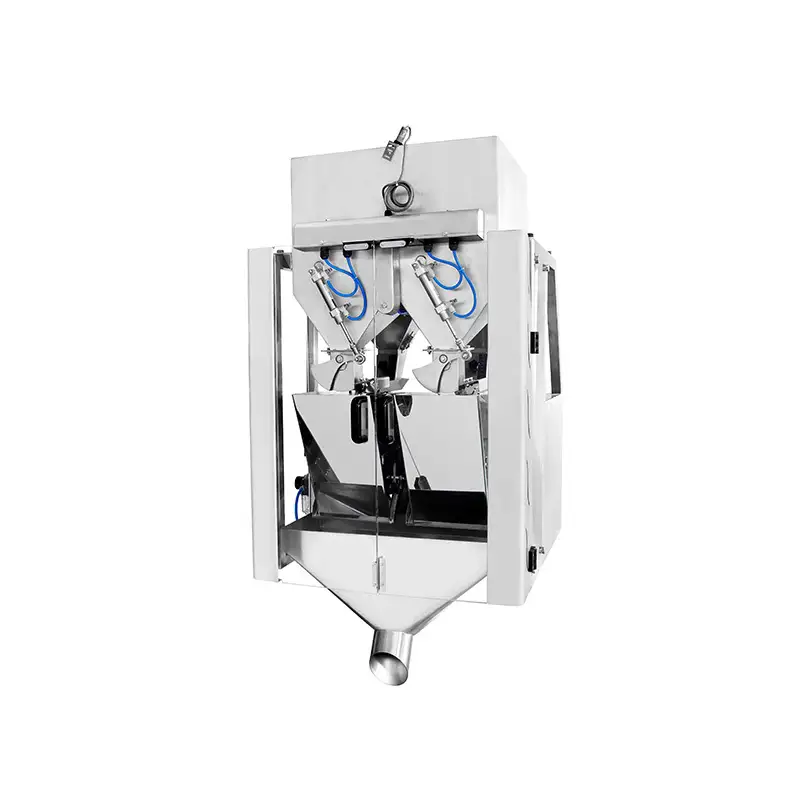

2-Lane High-Speed Linear Weigher
Model JW-AX2
The twin-lane version of the high-speed weigher above, with a 75L capacity inlet hopper feeding four outlets (two of which discharge rapidly) for higher throughput on the same heavy granular products.
Specifications
| Weighing range | 500 – 4,000 g |
|---|---|
| Accuracy | X(1) |
| Max speed | 28 bags/min |
| Hopper volume | 6 L (75L inlet hopper) |
| Power | 220V / 1,000W / 4.5A |
Applications
- White sugar, salt and seeds
- Monosodium glutamate and small particles
- Food, pharmaceutical, chemical and plastics sectors

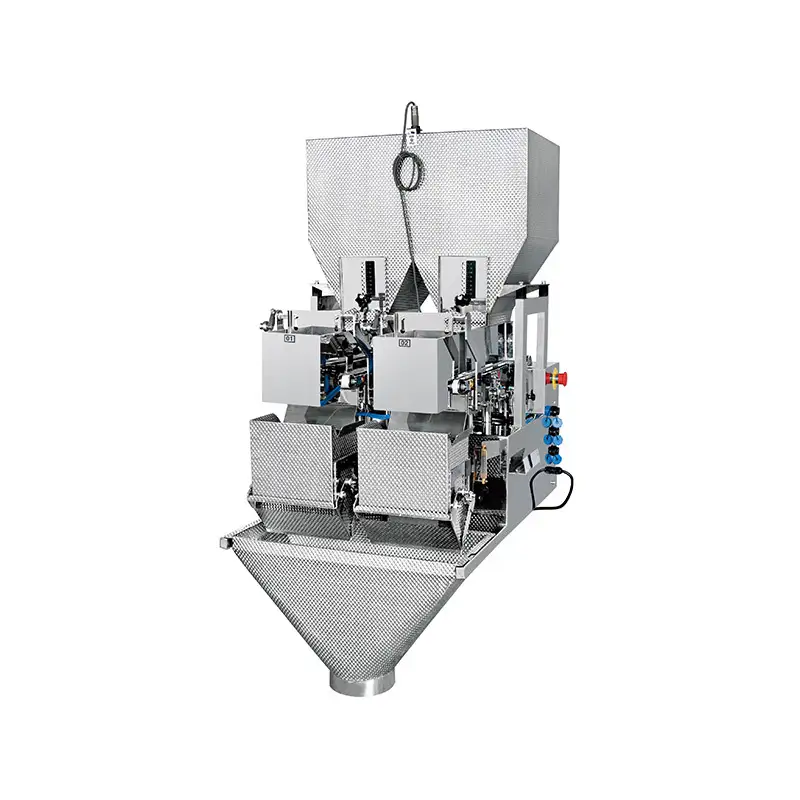

2-Lane Belt-Feed Weigher for Vegetables, Salad and Fruit
Model JW-AX2 · 4.5L Hopper
Replaces vibrating trays with a gentler belt-type feed, letting fluffy or sticky produce (vegetable and fruit salads, fresh cut produce) flow smoothly without bruising or clumping. Patterned plate contact surfaces further reduce sticking.
Specifications
| Weighing range | 50 – 2,000 g |
|---|---|
| Accuracy | X(1) |
| Max speed | 30 pieces/min |
| Hopper volume | 4.5 L |
| Power | 220V / 500W / 3A |
| Warranty | 2 years |
Applications
- Vegetable and fruit salads
- Fresh produce, sticky/viscous materials

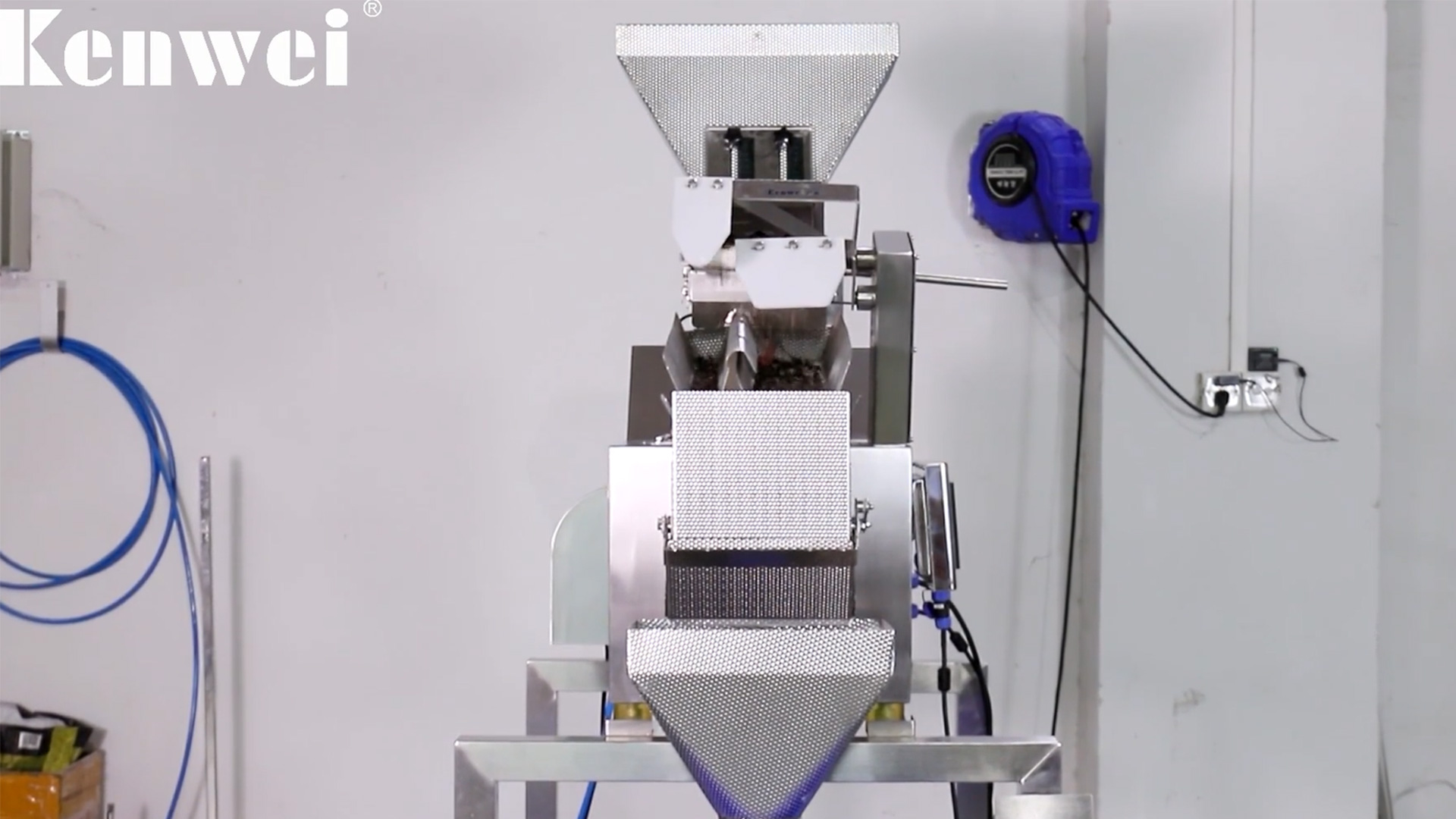

Two-Layer Belt-Vibrate Linear Weigher
Dual Main / Auxiliary Vibration System
Built for products with poor flowability and slight viscosity (brown sugar and industrial salt) as well as fresh corn kernels, cauliflower, onion slices and other blocky, diced or stemmed vegetables and medicinal products. A double-vibration plate feeds in two stages: the main plate delivers material quickly, while the auxiliary plate tops up accurately, with independently gated discharge on each.
Key features
- Independent main and auxiliary vibration plates
- Automatic gate open/close on signal feedback
- Two-stage feed: fast bulk fill, then accurate top-up
Applications
- Brown sugar, industrial salt
- Fresh corn, cauliflower, onion slices
- Diced vegetables, stems and medicinal products
