Weighing Equipment
Linear Weighers - Standard and Multi-Lane Range
Kenwei linear weighers from Autopac Systems: 4 to 8 lane machines for granules, powders, fruit and milk powder weighing. Same load-cell accuracy as a multihead, in a simpler straight-line design.
Enquire
Ask about this product
Simple, accurate, cost-effective weighing
Where a multihead weigher is not the right fit (lower throughput lines, larger or more delicate pieces, or simpler budgets) Kenwei linear weighers offer the same load-cell accuracy through a simpler, lower-cost single-line or multi-lane design. Autopac Systems stocks the range from compact 4-lane units up to 8-lane machines for higher-volume fruit and granule weighing.
A linear weigher feeds product down a series of parallel vibrating or belt-fed lanes, each ending in its own weigh hopper. The controller selects the lane combination closest to target weight and discharges together: the same combination logic as a multihead machine, but in a straight line rather than a circular head arrangement. This makes linear weighers simpler to maintain, gentler on delicate products, and a cost-effective option for small-to-mid volume lines. All models use 304 stainless steel food-grade construction, 7" touchscreen control and CE/OIML/SGS certification.
Featured models
From a 4-lane mini unit for light, dusty products to an 8-lane machine for fruit. Autopac Systems can help size the right linear weigher for your throughput.
6-Lane Linear Weigher for Granules and Powder
Model JW-AX6
A modular, 6-lane machine with stepless feed control for accurate, real-time metering of granular and powdered products, from table salt and sugar to sesame, rice, coffee and seasoning powders.
Specifications
| Weighing range | 50 – 3,000 g |
|---|---|
| Accuracy | X(1) |
| Max speed | 54 packs/min |
| Hopper volume | 3 L |
| Max lanes mixed | 6 |
| Power | 220V / 900W / 4A |
Applications
- White sugar, salt and seeds
- Rice, sesame and coffee
- Milk powder and seasoning powders

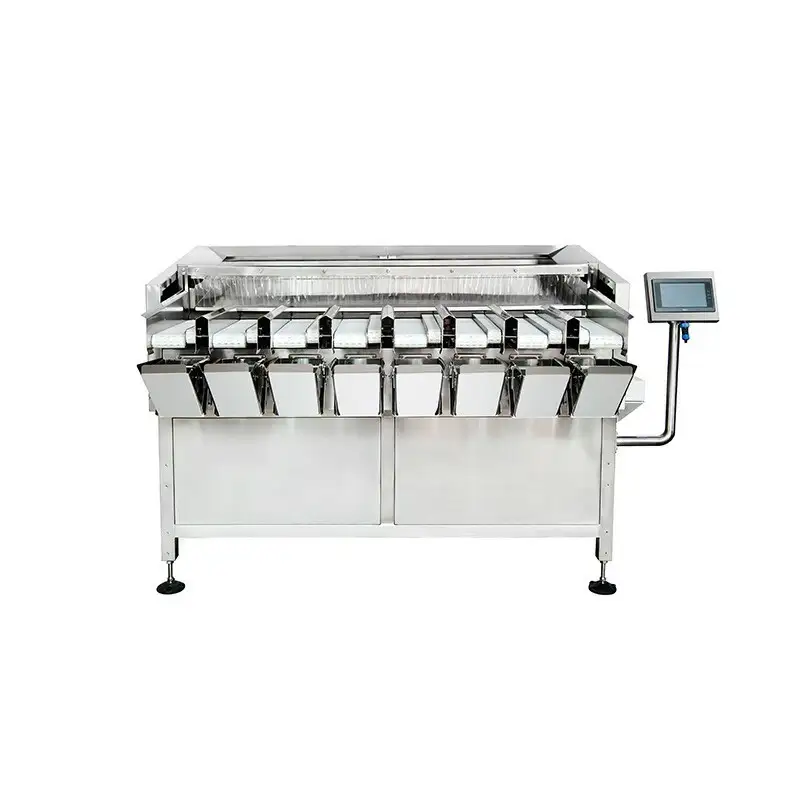

8-Lane Fruit Linear Weigher
Model JW-AX8
Built specifically for small whole fruit (cherry tomatoes, jujube, blue plum, lychee and similar 10–40mm produce) with a waterproof, disassembled conveyor for wash-down and easy line integration ahead of a boxing conveyor.
Specifications
| Weighing range | 10 – 1,000 g |
|---|---|
| Accuracy | XIII(1) - OIML R61 |
| Max speed | 45 packs/min |
| Hopper volume | 3 L |
| Power | 220V / 1,500W / 6.8A |
Key features
- Self-learning parameter adjustment
- USB data backup
- Compatible with boxing conveyor integration

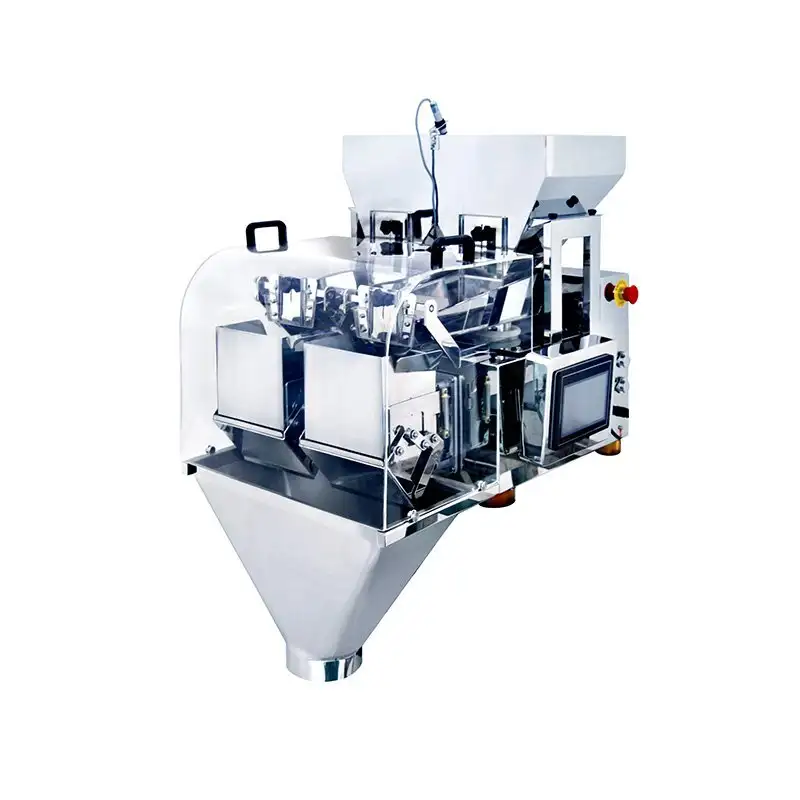

2-Lane Linear Weigher for Milk Powder
Model JW-AX2 · 4.5L Hopper
A stepless vibrating feed system tuned for powdery and small granulated products (milk powder, sugar, salt, MSG, chicken essence and coffee) with the ability to mix two different products at a single discharge.
Specifications
| Weighing range | 20 – 3,000 g |
|---|---|
| Accuracy | X(1) |
| Max speed | 30 packets/min |
| Hopper volume | 4.5 L |
| Power | 220V / 1,200W / 6A |
Applications
- Milk powder and coffee
- Sugar, salt and MSG
- Seasoning powders

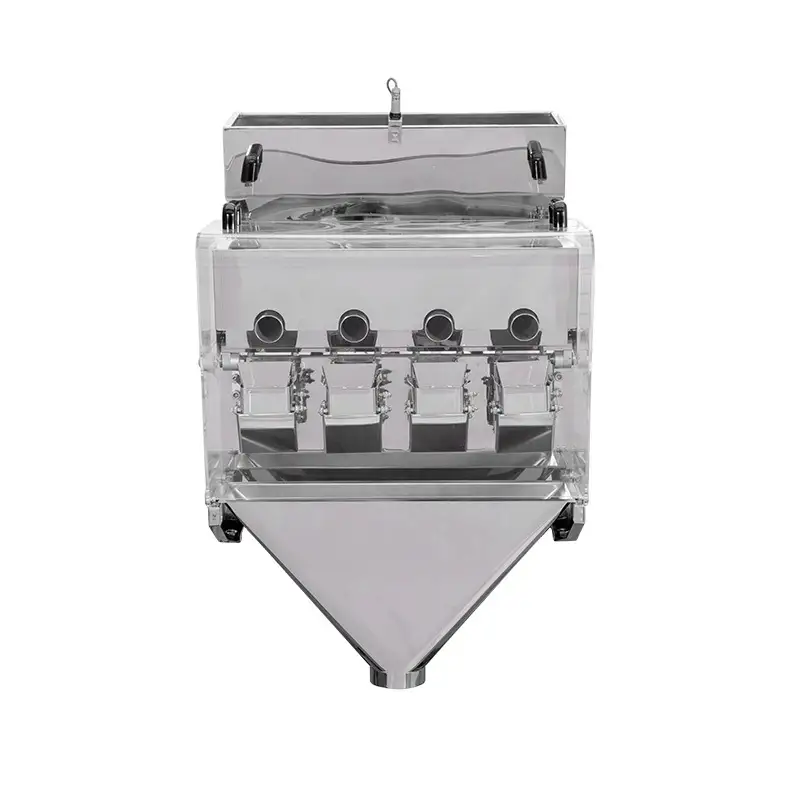

Mini 4-Lane Pipe-Type Linear Weigher
Model JW-AXS4
A compact, low-output machine designed for light, dusty or fluffy products (tea, dehydrated vegetables, dried flowers, chopped Chinese medicine and similar seasonings) where a full-size hopper would waste product or generate excess dust.
Specifications
| Weighing range | 5 – 200 g |
|---|---|
| Accuracy | X(1) |
| Max speed | 20 bags/min |
| Hopper volume | 0.5 L |
| Power | 220V / 530W / 2.4A |
Applications
- Tea and dehydrated vegetables
- Dried flowers
- Chopped medicinal herbs, light/dusty seasonings
