Colour Sorters
AMD Belt Colour Sorters
AMD LG and P-LG belt-type colour sorters for nuts and other products that chute machines struggle with. AI as standard; P-LG adds deep learning. 2 to 6 channels, optional waterproof and double-decker layouts.
Enquire
Ask about this product

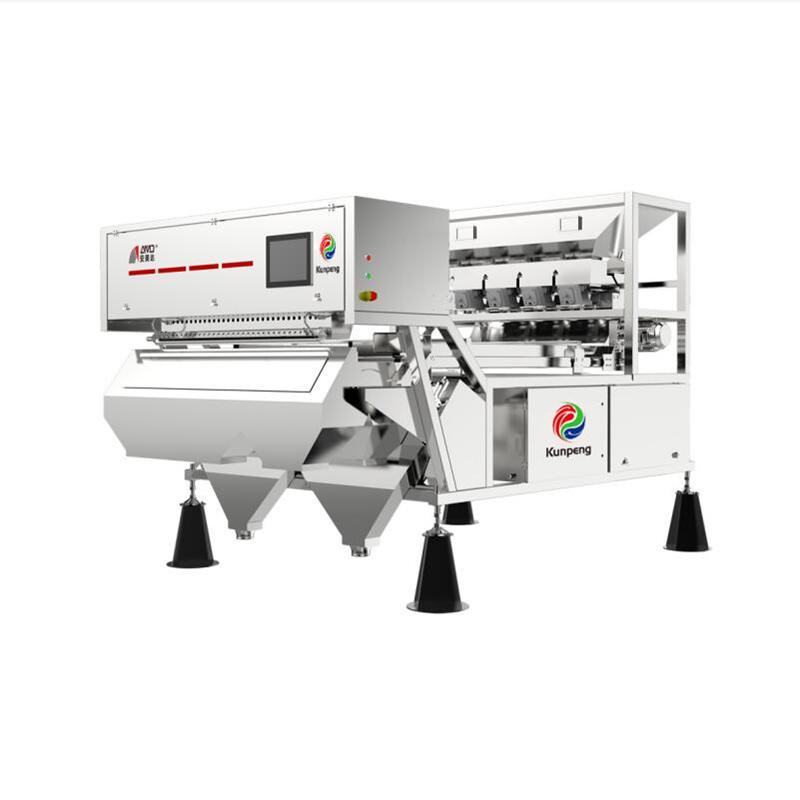

AMD P-LG deep learning belt-type colour sorters handle materials that traditional chute colour sorters cannot. Belt presentation keeps fragile product such as almonds, macadamia, walnuts and hazelnuts stable while cameras inspect colour, shape and surface defects.
Single-deck and double-deck options are available. A double decker can remove two contaminant types from the primary sort. On macadamia, deck 1 can take blacks, borer holes and husked nuts from whole nuts, then deck 2 can separate husked nuts from blacks so husked product can return to the de-husker.
Model codes
LG n is AI only. P-LG n is AI plus deep learning. n is the channel count: 2, 3, 4 or 6. Capacity is typically 800 kg to 1 t/h per channel.
Add Y for a waterproof belt sorter (example: LGY4, PLGY4). Add S for a double-decker (example: LGS4, PLGS4).
Send a product sample and Autopac can trial it on an AMD belt sorter before you specify a machine. Contact Autopac Systems for a configuration matched to your product and line.
Belt sorters · Multi-chute · Enclosed 360 · Z series · RG+ NIR · XA6 X-ray sorter
Specifications
| Series | Channels | AI | Deep learning |
|---|---|---|---|
| LG | 2, 3, 4, 6 | Yes | No |
| P-LG | 2, 3, 4, 6 | Yes | Yes |
| Capacity | About 800 kg to 1 t/h per channel | ||
| Options | Y waterproof, S double decker |
